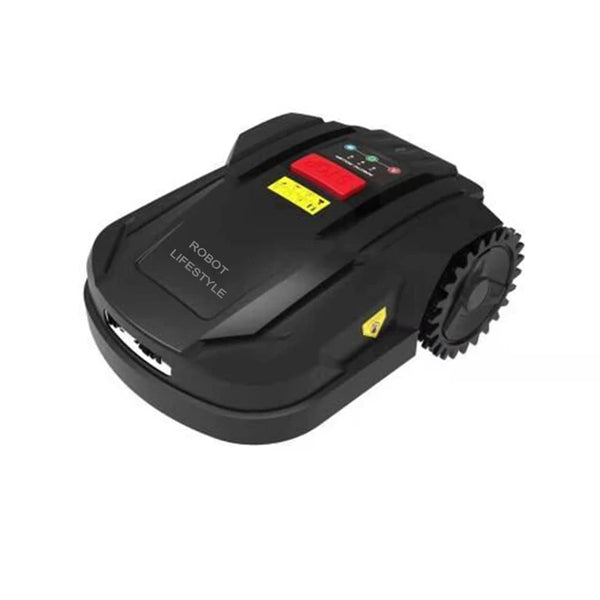

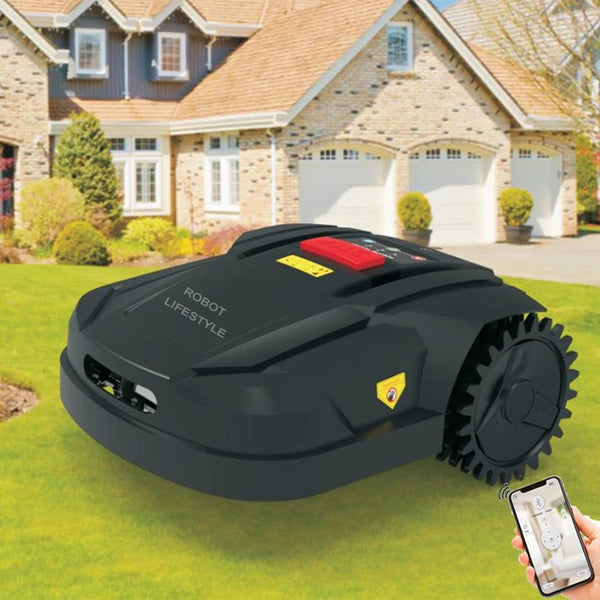

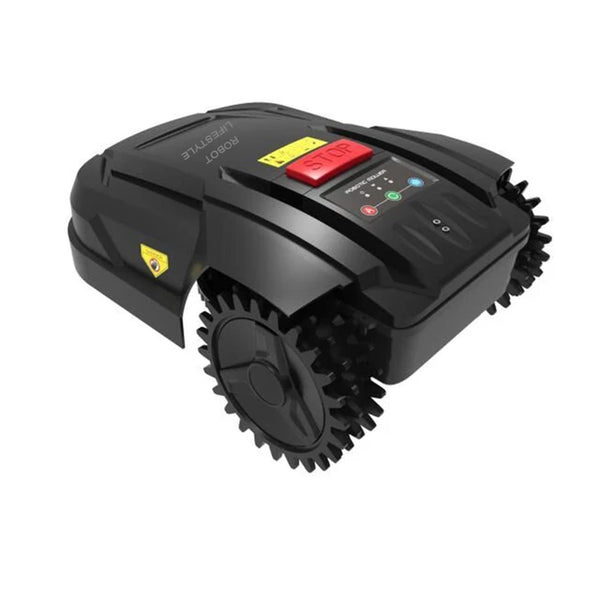

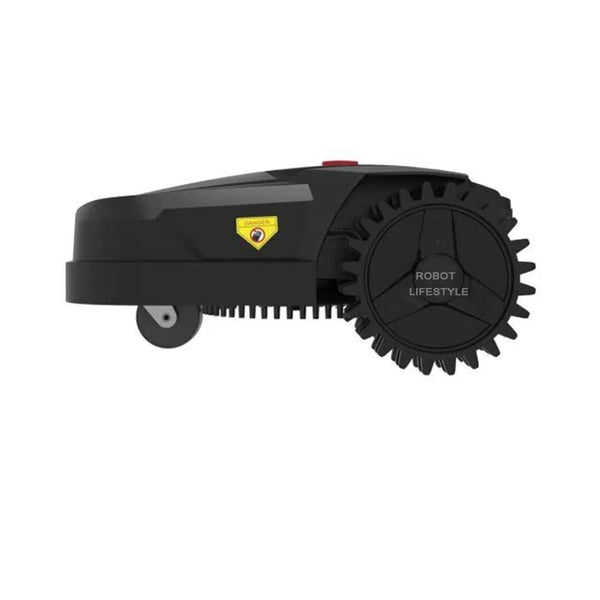

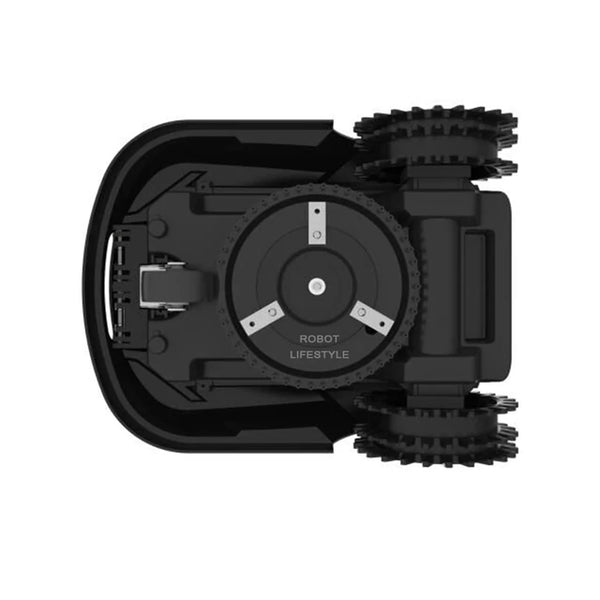

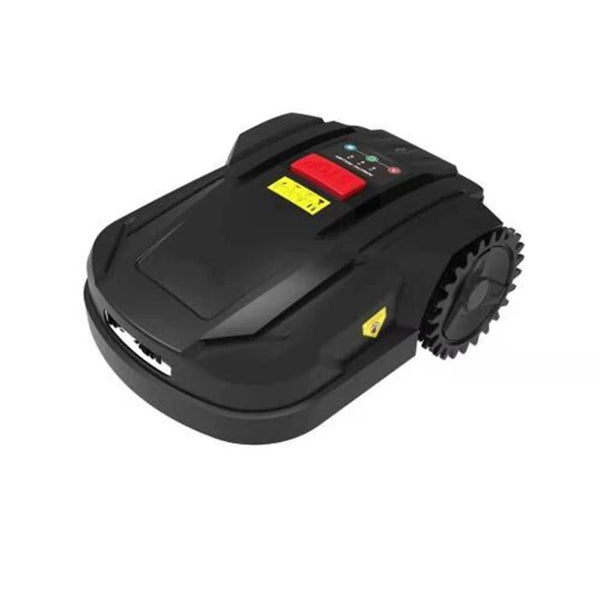

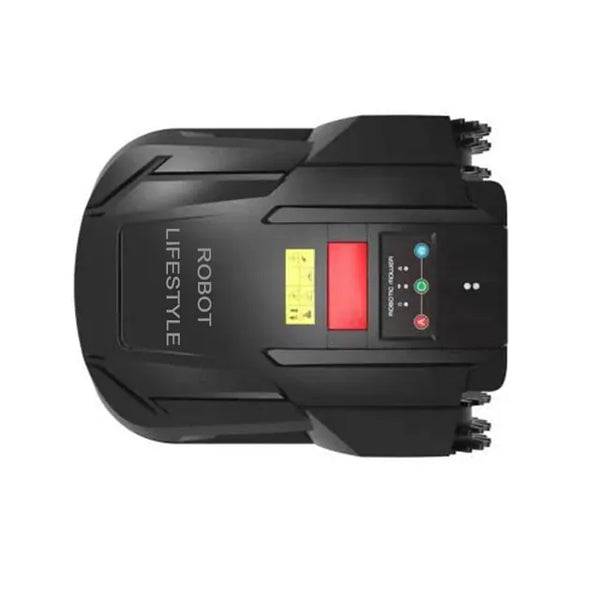

Lawn Mower Robot H750 with WIFI APP,Working Capacity 800m2,Gyroscope Navigation,Water-proofed Charger,Subarea+Range Function
-Function
1.Type of batteryLithium
2.Battery capacity2.2Ah
3.Charging time≤1.5hours
4.Average working time45mins
5.Follow virtual wire walking is optional√
6.Mower is disabled if virtual wire is cut or broken√
7.Mower is disabled without power to charging station√
8.Cutting height adjustment√
9.Rain sensor√
10.Auto recharge√
11.Intelligent spiraling√
12.Go straight√
13.Anti theft√
14.Lift sensor√
15.Tilt sensor√
16.WIFI Application√
17.Bump sensor√
18.Waterproof√
19.Time set-up system√
20.Emergency switch√
21.Password set-up√
22.Gyroscope√
23.Average working time√
24.Language option√
25.Subarea setting√
26.Range option√
27.Touch sensor√
-Technical data
1.Coverage(for once charging): 200m±20％
1.Working capacity : 800m±20％
2.Max ambient functioning temp.: 40℃
3.Noise: ≤60db
4.Charging station size: 44*48.2*15cm(LWH)
5.Virtual wire maximum length : 300m/0.5mm
6.Standard virtual wire length: 100m/0.5mm
7.Gross weight: 15KGS
8.Net weight: 12KGS
9.Mower size: 48*36*21.5cm(LWH)
10.Rated power: 75W
11.Qty for cutting blades: 3pcs
12.Cutting height: 2.5-5.5cm
13.Cutting width:18cm
14.Cutting speed: 35m/min
15.Blades rotate speed: 3200rpm
16.Hill capability: 20degree Max slope
Function of H750
- Lift sensor
There are lift sensors located between the top and middlecover. If the mower is lifted from ground, it will stops working within 1 second.
- Tilt sensor
There are tilt sensors installed on the mower too, whenthe mower is tilted over 30 degrees in any direction, it stops working within 2 seconds.
- Bump sensor
The bump sensors that will activate when the mower strikes solid, fixed object when that object is at least 6cm in vertical height from the supporting surface of the mower. When the bump sensor activated, the mower will back up for working.
- Rain sensor
There are two rain sensors located on the mower. The mower will go back to the charging station automatically when it's raining.
Rain sensors can be selected ON/OFF from APP
Turn on: the mower will go back home if it is raining.
Turn off: the mower will go on mowing when it is raining.
- Wifi
The IOS user can search “EGROBOT” in the Apple Store to download the application.
The Android user search “EGROBOT” in the Google Store to download the application.
- Area working time setting(mowing schedule)
Set up one week (From Monday to Sunday, once foreach day) cutting schedule from APP.This function should be used together with Area location setting.
- Cutting width: 18cm
- Easy cutting height adjustments
The cutting height could be adjusted on the mower bottom cover cutting height adjustment knob via the equipped spanner.
- Auto recharge system
When the mower senses a low battery situation, it will shut off the cutting motor and search for the virtual wire. Once found it will follow the virtual wire to the charging station for recharge automatically. Once charging is complete, the mower will back up a few centimeters ready to go again in stand by mode.
- Emergency stop switch
There is an emergency button located on the top of mower and in red color.
Press it to turn on the mower .
Press it again to turn off the mower.
- Two cutting modes
There are two cutting modes of the mower, go straight and go circle (high efficiency). In Auto, mower selects cutting mode intelligently. It goes straight if the grass is sparse or it has be cut off,and it goes circle if the grass is dense or long. In manual mode, the mower will go where you direct it.
- Virtual wire
The robot lawn mower can't be operated without a virtual wire. (we suggest to use 100m-600m of virtual wire). The mower will follow virtual wire to charging station, the virtual wire acts as a virtual fence. It will get on the virtual wire until it meets charging sheets, then it gets off from virtual wire and starts cutting inside.
Mower stops working if virtual wire is cut off or charging station is power off.
If virtual wire is cut or broken, or the charging stationloose power, the mower will stop working within 3 seconds
- Three steps to safely start the mower
- Connect charging station with power supply by charger and make sure the recharging light is in green color.
- Connect virtual wire to charging station and make sure it is in good connecting(virtual wire light in colorless).
- Press emergency button and start auto mode.
- Overload protect
The cutting motor and running motor are monitored continuously during operation for any situation that may cause these motors to over-load.
In the event this is detected, the mower stops operating.
- Waterproof
Waterproof design, which protect inside parts from humidity.
The waterproof class is IP54
Please stop the robot mower under rain cover or other waterproof shed while raining! And if the lawn is with high humidity, it’s best not send the robot out working.
- Gyroscope
The mower has gyroscope to keep it going straight on inclines.
- Area location setting(Subarea setting)
You can select Subareas for the mower to cut. This works
well for large lawn. See Section 6.4.
- Different languages selection on App.
- Touch Sensor
Touch the handle when the mower is cutting, it will cease function.
